| MOQ: | 1 set |
| Price: | Pending |
| Standard Packaging: | 1pc/ aluminum case |
| Delivery Period: | 7days |
| Payment Method: | Western Union, L/C, T/T |
| Supply Capacity: | 3000 pcs per month |
Description

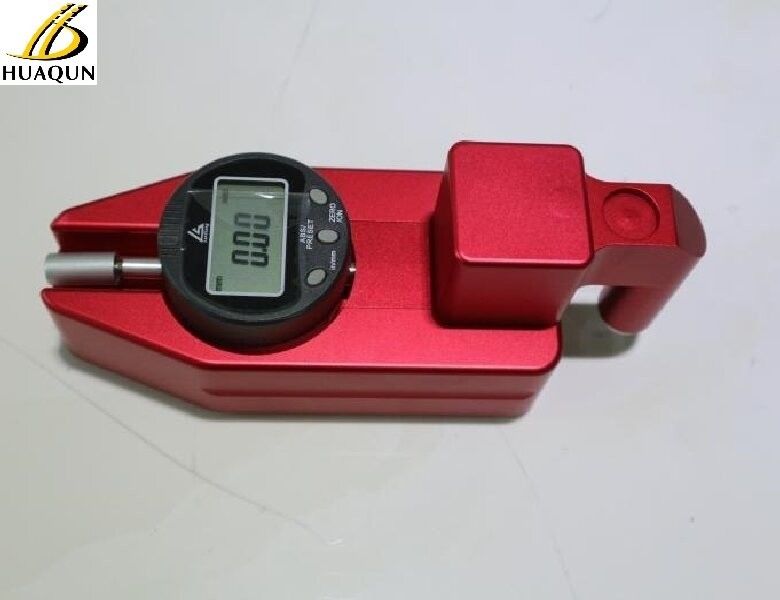

The marking thickness measuring instrument is specially designed and produced for production, quality supervision, engineering construction, supervision and other units to measure the marking thickness. The instrument has the characteristics of reasonable structure design, simple operation, wide applicability, high measurement accuracy, and is mainly used to measure the thickness of pavement marking after being put into use.
The thickness detector of the marking conforms to the relevant measurement requirements for the thickness of the completed marking in the national standard GB/T Quality Requirements and Test Methods for Road Traffic Marking.
Scope of application
1. Applicable to all types of road signs including or excluding reflection rays.
2. A high-precision measuring instrument that can quickly measure the coating thickness of road signs and similar coatings.
3. Digital display, clear and readable.
4. It can be measured directly on the road site or in the laboratory.
5. It is applicable to national transportation departments, highway laboratories and road sign manufacturers.
Features
1. Unique precision wire gauge and digital display for rapid determination of dry film thickness of road signs and similar coatings.
2. It can be measured relative to the substrate or the mark itself.
3. The digital display provides reliable measurement results in seconds.
4. Easy to operate.
5. Robust structure and ergonomic design.
Main Parameters
| Measurement Items | Thickness of road markings |
| Measuring range | -12.7mm-12.7mm |
| Resolution ratio | 0.01mm |
| Accuracy | 0.02mm |
| Overall volume | 180mm×70mm×76mm |
| Net weight | 1.2kg |
Compliant with Specifications:
EN13197; EN13212
Simple Operation Steps:
1. Start up: Press the ON/OFF button to start up.
2. Zero calibration: Put the instrument on the smooth surface, press the measuring head downward until can't down; meanwhile press the zero setting and the screen will be displayed to 0.00. If not displayed to 0.00, the up steps can be tried several times until the screen appears to 0.00MM and the value is adjusted to 0.00MM.
3. Test: The screen appears 0.00MM, which means the zero calibration is succeed. Put the measuring head on the marking line and then press down the measuring head until can't be pressed down; the value displayed on the screen is the thickness of the marking line.
|
|
